The fast, well-connected mono laser with added capacity

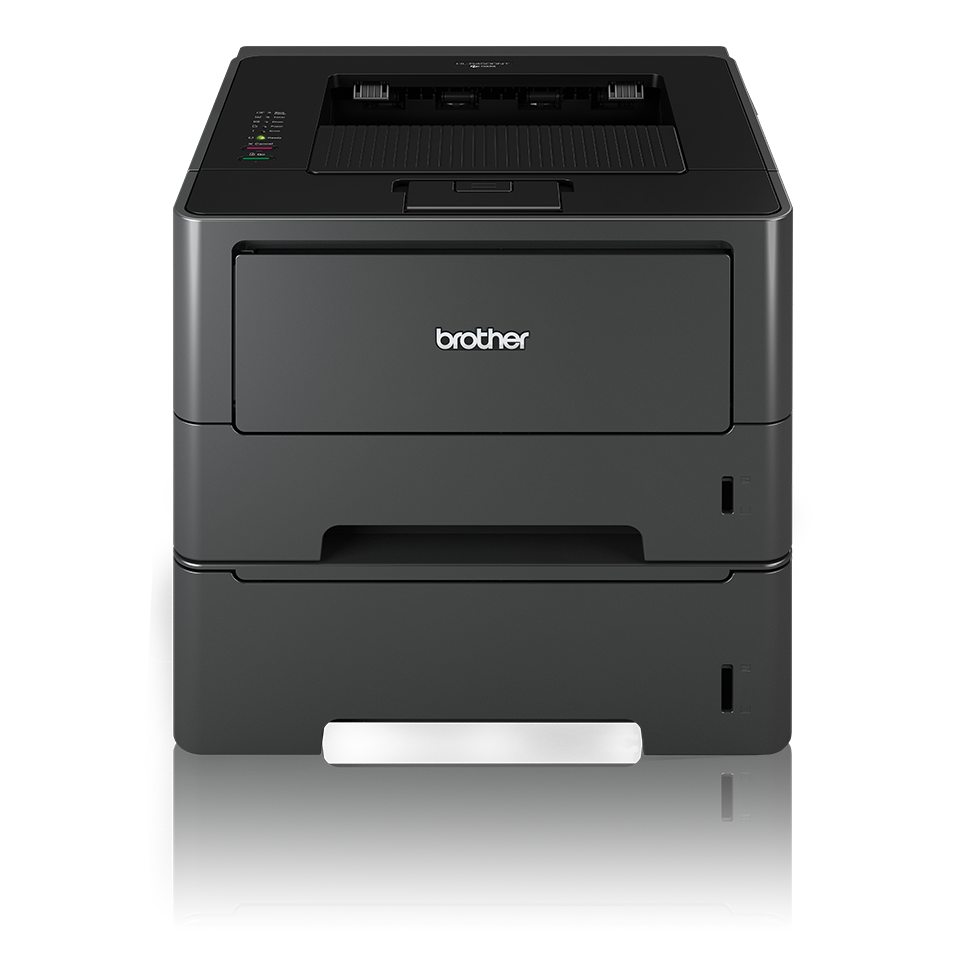

HL5450DNTZU1
HL5450DNTZU1
| Printer type | Mono |
|---|---|
| Function | |
| Laser classification | Class 1 laser product (IEC 60825-1:2007) |
| Max paper size | A4 |
| Memory | 64MB (expandable up to 320MB using 1 x 144 pin, 16bit DDR2 DIMM)) |
| Processor | 400MHz |
| Technology | Laser |
| Connectivity | Wired Network |
|---|---|
| Local interface | Hi-Speed USB2.0 |
| Wired network interface | Ethernet (10Base-T/100Base-TX) |
| Supported | AirPrint, Cortado Cloud Print, Google Cloud Print, iPrint&Scan |
|---|
| 2-sided copy | Yes |
|---|---|
| 2-sided copy speed A4 | 18 copies per minute |
| With carton | 664(w) x 503(d) x 671(h) mm / 19.7kg |
|---|---|
| Without carton | 371(w) x 384(d) x 375(h) mm / 13.6kg |
| Blue Angel environmental accreditation | Yes |
|---|---|
| Nordic Swan environmental accreditation | Yes |
| Power consumption (Watts) | 665W active, 4.7W ready, 0.6W deep sleep |
| Sound power | 6.79BA active, 6.4BA quiet mode, 4.63BA ready |
| Sound pressure | 59dBA active, 54dBA quiet mode, 34dBA ready |
| Typical electrical consumption | 2.0kWh / week |
| Contents | Power supply cord, Product safety guide, Software disc, Supplies, User guide, Warranty card, Quick setup guide |
|---|
| Types and sizes | Standard Paper Tray - A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), B6(ISO), A6, Executive, Legal, Folio. Lower Paper Tray - A4, Letter, B5(ISO/JIS), A5, B6(ISO), Exective, Legal, Folio. Multi-Purpose Tray - Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm. (A4 only supported in automatic duplex print mode) |
|---|---|
| Weights | Standard / Optional Paper Tray - Plain & recycled paper (between 60 - 105 g/m2), Multi-Purpose Tray - Plain, recycled & bond paper (between 60 - 163g/m2) |
| Secure print | Yes |
|---|---|
| Secure function lock v2 | Restrict print activities to selected users and assign optional page limits |
| Wired network | Yes |
| Wired network security | APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos |
| Supported | Windows® 8(32 & 64 bit editions), Windows® 7 (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows® XP Professional (32 & 64 bit editions), Windows® XP Home Edition, Windows® Server 2012R2, Windows® Server 2012, Windows® Server 2008R2, Windows® Server 2008 (32 & 64 bit editions), Windows® Server 2003 (32 & 64 bit editions). OS X 10.5.8, 10.6.x, 10.7.5, 10.8.x, 10.9.x, 10.10 or greater. Linux CUPS, LPD/LPRng (x86/x64 environment) |
|---|
| Paper input | 250 sheet 500 sheet standard paper trays, 50 sheet multi-purpose tray |
|---|---|
| Paper output | 150 sheets face down, 1 sheet face up (straight paper path) |
| A4 standard print speed | Up to 38 |
|---|---|
| Resolution | 1,200 x 1,200dpi, HQ1200 (2,400 x 600dpi quality), 600 x 600dpi |
| Automatic 2 sided print | Yes |
| Emulations | PCL6, BR-Script3 (Postscript®3TM Language Emulation), IBM Proprinter XL, Epson FX-850 IBM Proprinter XL, Epson FX-850 |
| First print out time | Less than 8.5 seconds |
| Supported | AirPrint, b-guard, Cortado Cloud Print, Google Cloud Print, iPrint&Scan, Managed Print Services |
|---|
| Supplies | In-box Toner Approx. 3,000 pages* Standard Toner TN-3330 - Approx. 3,000 pages* High Yield Toner TN-3380 - Approx. 8,000 pages* Drum DR-3300 - Approx. 30,000 pages (one job per page). *Approx. cartridge yield is declared in accordance with ISO/IEC 19752 |
|---|
| Warranty | 12 months |
|---|
