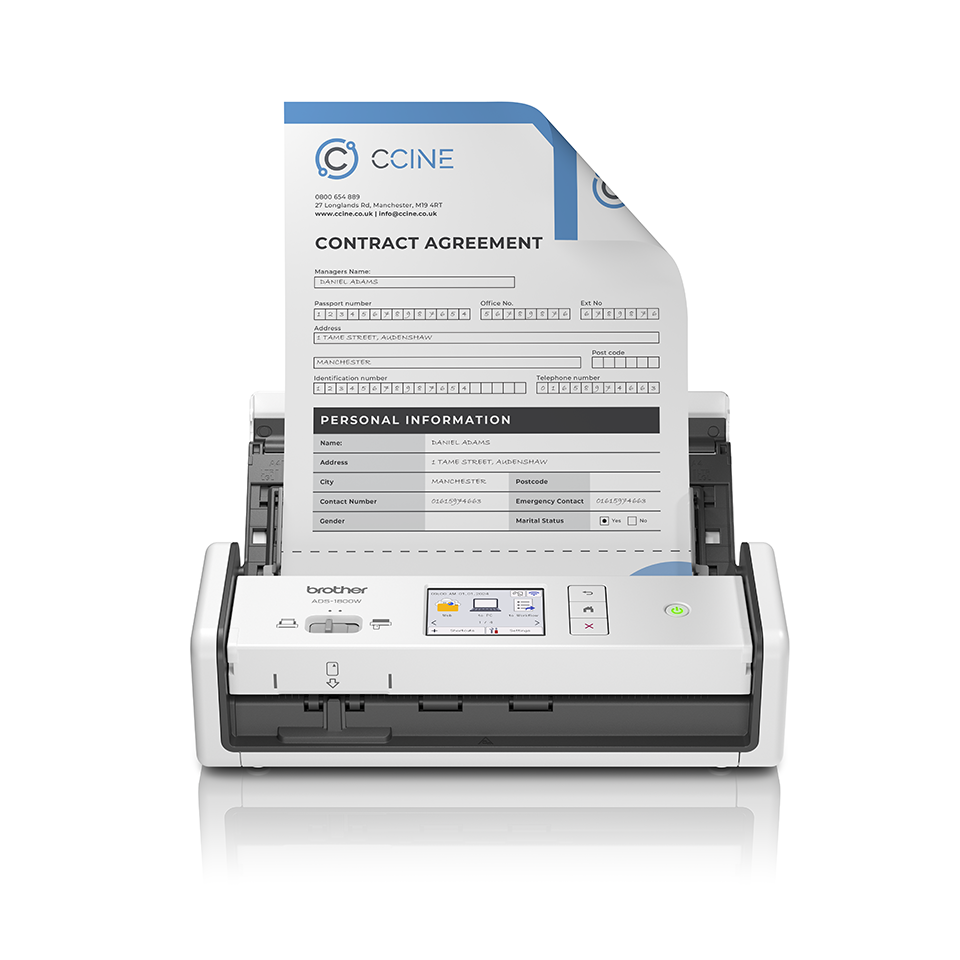

ADS-1800W Compact, Portable, Wireless Document Scanner

Stay productive wherever you are working. Simply connect the scanner to a portable powerbank and work anywhere without any limitations to performance.

Scan up to 30ppm

60ipm, 2-sided colour scan

Large 7.1cm touchscreen

Product Overview

ADS-1800W Compact, Portable, Wireless Document Scanner

20 sheet Automatic Document Feeder (ADF)

Power directly via USB Type-C

Create up to 20 one-touch scan activity shortcuts

  • Scan up to 30ppm
  • 60ipm, 2-sided colour scan
  • Large 7.1cm touchscreen
  • 20 sheet Automatic Document Feeder (ADF)
  • Power directly via USB Type-C
  • Create up to 20 one-touch scan activity shortcuts

About this product:

Powerful yet compact and portable, scanning from any location just got easier with the ADS-1800W. Compatible with external powerbanks, effortlessly scan your documents when and where it is most convenient for you.

Together with wireless connectivity, you can easily connect and scan using your mobile phone or tablet and enjoy seamless workflows with powerful PDF editing and document management software.

  • Create up to 25 preset scan to destinations
  • No PC connection required
  • Mobile App support
  • OCR and PDF editing software included
  • Compatible with Barcode Utility
  • Optional paper output tray available
  • Supports Brother Mobile Connect app
*See datasheet for detailed technical information

Specifications

General

Usage type Desktop, Portable
Backup clock Yes
Control panel LED, Keys
Display Colour touchscreen
Display size 7.1cm (2.8") LCD

Connectivity

USB interface USB Type-C *Requires USB Type-C connection with 15W power source (not included), USB 2.0 Host (Rear, up to 128GB)
Wi-Fi Direct 802.11g/n
Wireless network interface 2.4GHz: IEEE 802.11b/g/n (Infrastructure Mode)

Dimensions & weights

With carton W 369 x D 158 x H 200 mm
With carton 3.46 kg
Without carton W 288 X D 101 X H 85 mm input tray closed
Weight 1.42 kg

Energy Consumption

Operating Up to 12 watts
Ready mode 6.4 watts
Sleep mode Up to 1.5 watts
Off 0.1 watts

Environment

Operating humidity 20 to 80%
Operating temperature 5 to 35 degrees celsius
Sound power 62dB

In the box

Device Yes
Product safety guide Yes
USB cable Yes
Quick setup guide Yes

Media specifications

Types and sizes Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Non carbon paper, Receipt, Business Card, Plastic Card
Weights 51.8 - 128 gsm, Paper 0.08 ~ 0.14mm, Plastic card thickness embossed up to 1.24mm or without emboss 0.75-1.02mm
ADF media sizes Paper : width 51 - 215.9mm, height 70 - 355.6mm, Plastic card: width min/max 51-55mm, length min/max 80-90mm, Long Paper 5000mm (300dpi 1-sided single paper)

Network

IPv4 DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, SMTP Client, FTP/SFTP Client, SMB Client(SMB1.0/2.0/2.1) (=CIFS Client), SNMPv1/v2c/v3, HTTP/HTTPS server, ICMP, Web Services(Scan), SNTP Client
IPv6 RA, DNS Resolver, mDNS, LLMNR responder, SMTP Client, FTP Client, SMB Client(SMB1.0/2.0/2.1) (=CIFS Client), HTTP/HTTPS server, ICMPv6, Web Services(Scan), SNTP Client, SNMPv1/v2c/v3
Wireless network security SMTP-AUTH, SSL/TLS (HTTPS, SMTP), SNMP v3, SSH, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
Wireless setup support Yes

Operating systems & software

Supported OS For full list of compatible operating systems visit support.brother.com
Software supplied - Mac Brother iPrint&Scan for Desktop, Kofax Power PDF Standard v3, Remote Setup
Software supplied - Windows Brother iPrint&Scan for Desktop, Kofax PaperPort 14SE with OCR, Kofax Power PDF Standard v5, Remote Setup, Easy Setup

Scanning

2-Sided scan Yes
A4 Scan Speed 30
ADF 20
Scan to Scan to PC (Image), Network (SMB), Email Server, Workflow, FTP/SFTP, SharePoint (On Premise), Brother Webconnect, Brother Cloud Apps
Drivers TWAIN, WIA, AirPrint Scan (Driverless) SANE
Greyscale 256 levels
Interpolated scan resolution 1200 x 1200 dpi
Scan resolution from ADF 600 x 600

Supplies and accessories

Optional accessories Carrier Sheet CS-A3301, Pick-up Roller PUR-2001C, Separation Pad SP-2001C, Output Tray OT-1001C, Legacy Kit (LK-1001CEU, LK-1001CUK), USB Power Adapter (PA-AD-004EU, PA-AD-004UK)

Warranty

Warranty 12 months
